STERLINK lite
lite
Low Temperature Plasma Sterilizer
for Small Medical Devices in Short Time
for Small Medical Devices in Short Time
The world’s first direct injection pouch-type patented sterilization technology has been applied.
SAL of 10-6 is validated to ensure sterilization stability of medical devices.
(SAL: Sterility Assurance Level, 99.9999%)
SAL of 10-6 is validated to ensure sterilization stability of medical devices.
(SAL: Sterility Assurance Level, 99.9999%)
Sterilization Performance
STERLINK lite verifies sterilization performance through the following lumen tests
Single-channel lumen claims for STERLINK lite
Single-channel lumen claims for STERLINK lite
- Ø0.7 x 500mm Stainless steel
Low Temperature
Sterilization
Easy
Operation
Fast
Sterilization
Compact
Design
Lumen
Sterilization
Economical
Sterilization
Low Temperature Plasma Sterilizer
for Small Medical Instruments
for Small Medical Instruments
Specification
| STERLINK lite | |||
|---|---|---|---|

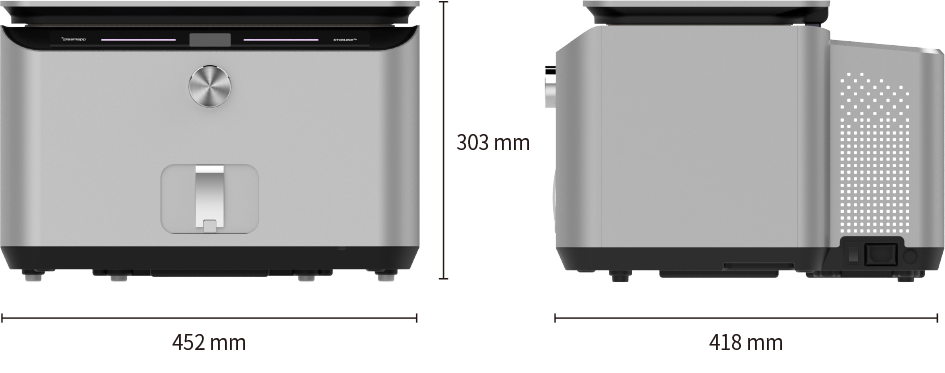

| Size(W x D x H) | 452 x 418 x 303 mm | Vacuum Pump | Pump built-in type |

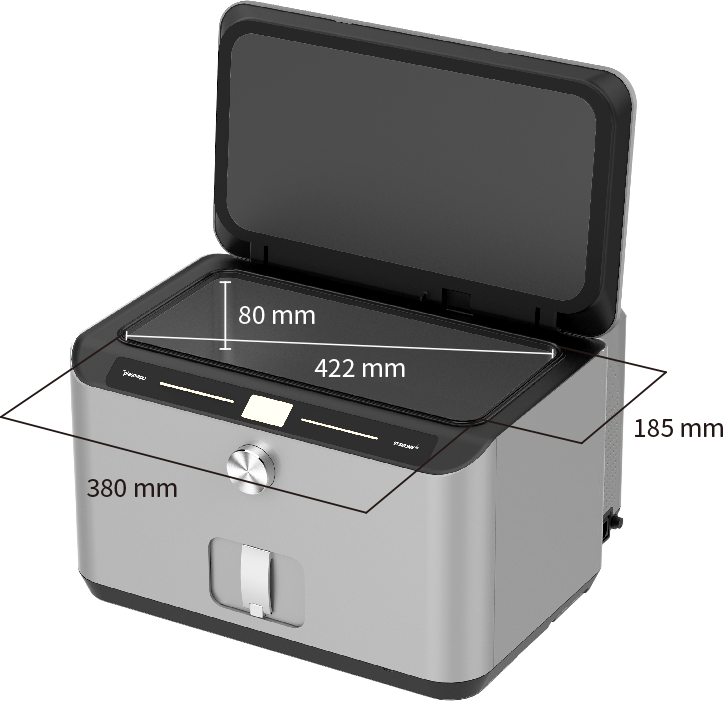

| Chamber(W x D x H) | 380 x 185 x 80 mm(6ℓ) | Weight | 28kg |
| Chamber Diagonal Length | 42.2cm | Sterilant Cassette | 20 Cycles (Standard Mode) 20 Cycles (Advanced Mode) |
STERMATE Sterilant
Introducing the Sterilant used with the STERLINK lite
- STERLOAD lite
- Standard Mode : 20 Cycles
- Advanced Mode : 20 Cycles
Standard Mode / Advanced Mode

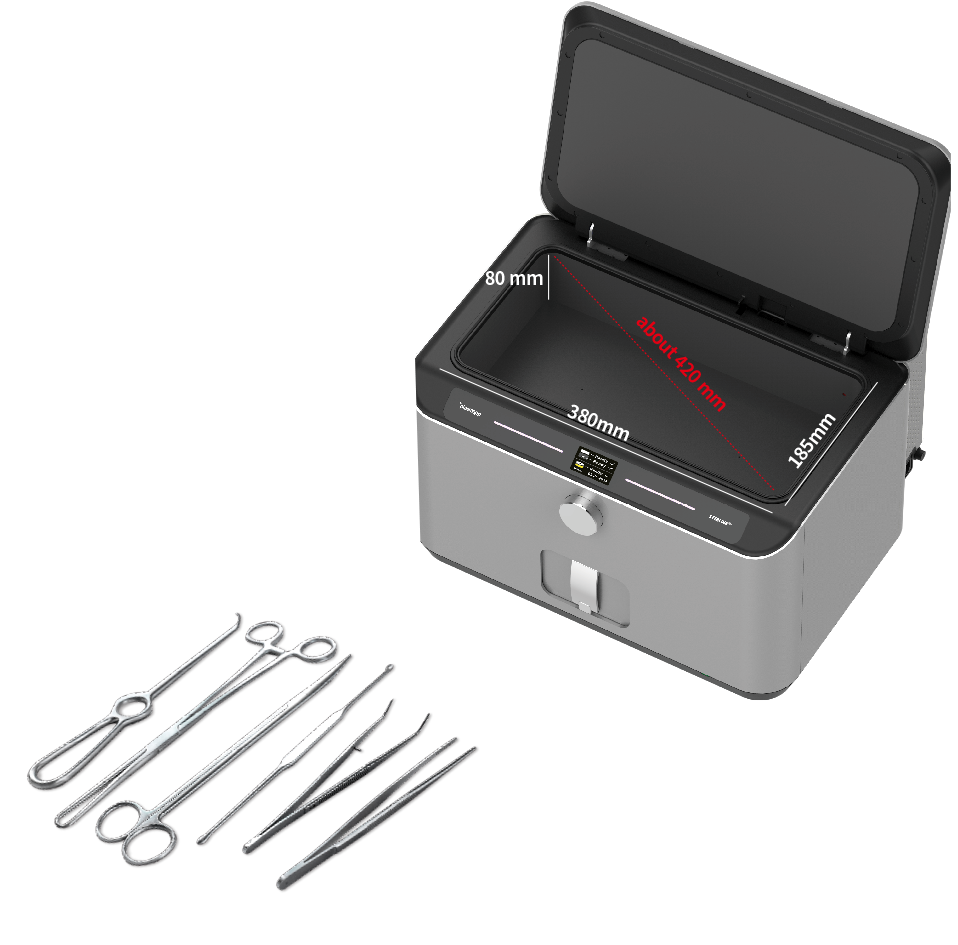

- Medical instruments in the 6 liter chamber are sterilized in a short time.
- Sterilant is contained inside the can which prevents any hazard from chemical exposure.
- Two sterilization cycle modes can be used to quickly sterilize medical instruments.
- Use Tyvek® for easy storage after using chamber mode.
Cycle Time
| Mode | Cycle Time | Capacity | Sterilant |
|---|---|---|---|
| Standard Mode | Standard Mode : 13 min | 6ℓ | H2O258% - 59.5% (0.35ml/cell) |
| Advanced Mode | Advanced Mode : 19 min | 6ℓ | H2O258% - 59.5% (0.7ml/cell) |
Innovative plasma sterilization technology verified
through patents and research papers
through patents and research papers
Forced convective heating for low-temperature sterilization
Publication expected in 2021 (AIP) - https://doi.org/10.1063/5.0048688
Review of Scientific Instruments 92, 064902 (2021) conducted by Dr. Youbong Lim, Dr. Wonho Choe, Dr. Seung Hun Lee, Dr. Jun Young Kim and Dr. Hyun Jeong Jeon
Publication expected in 2021 (AIP) - https://doi.org/10.1063/5.0048688
Review of Scientific Instruments 92, 064902 (2021) conducted by Dr. Youbong Lim, Dr. Wonho Choe, Dr. Seung Hun Lee, Dr. Jun Young Kim and Dr. Hyun Jeong Jeon
