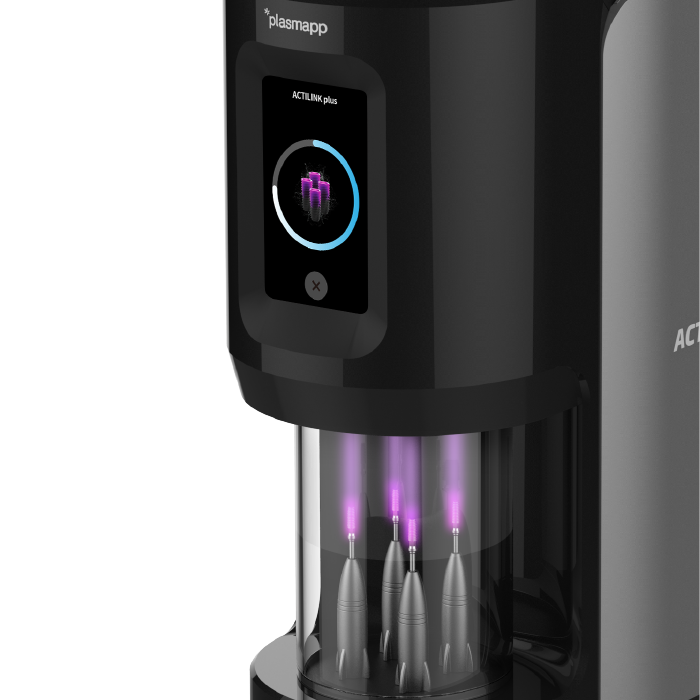

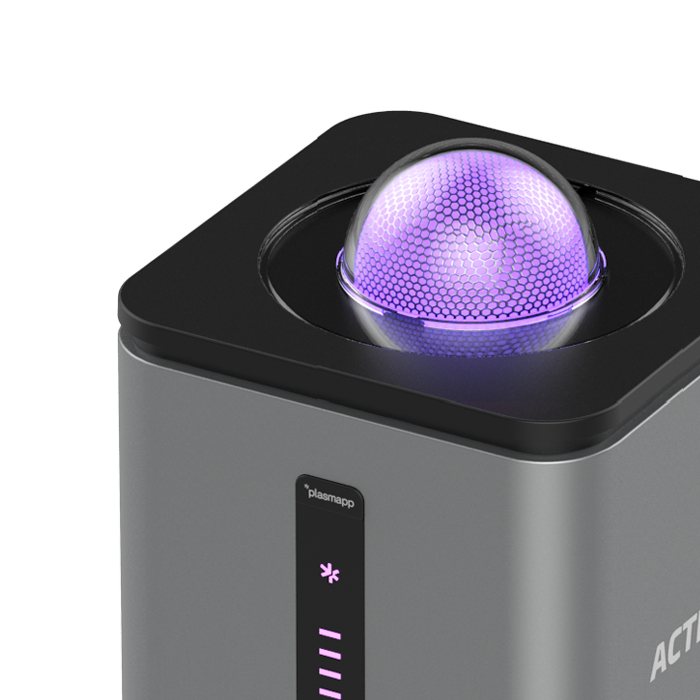

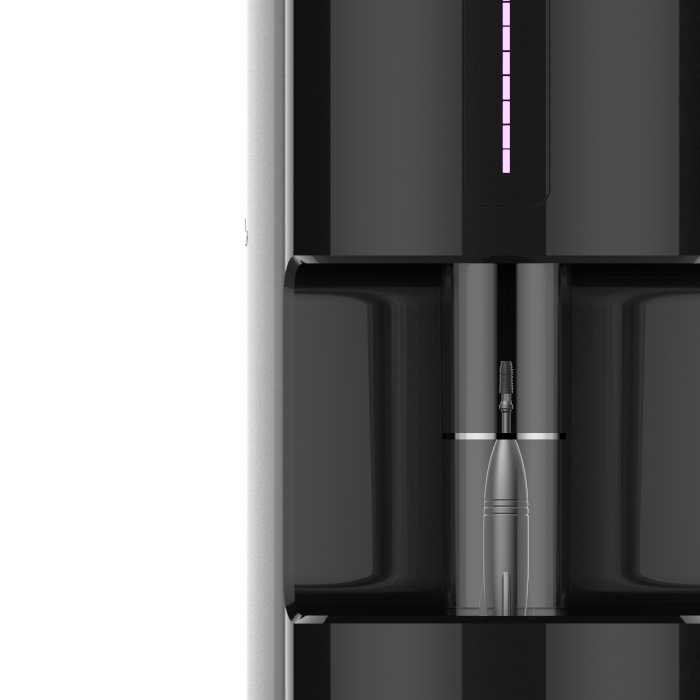

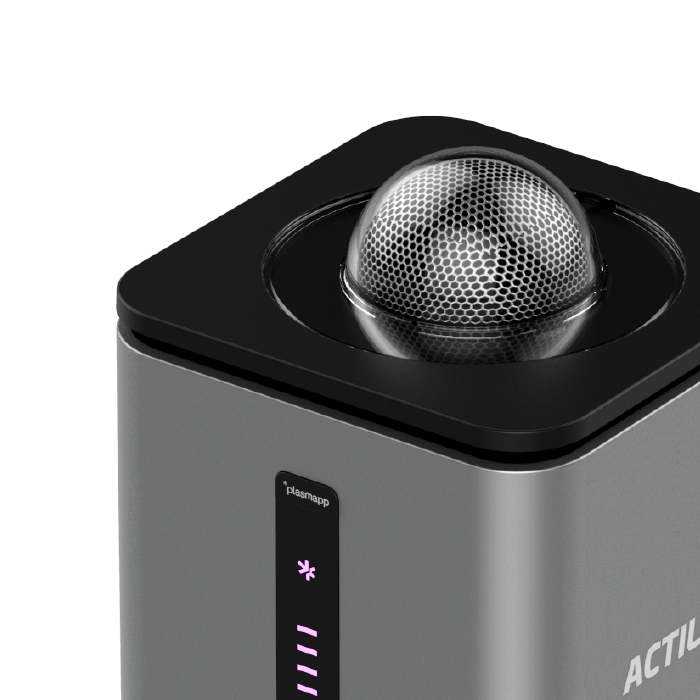

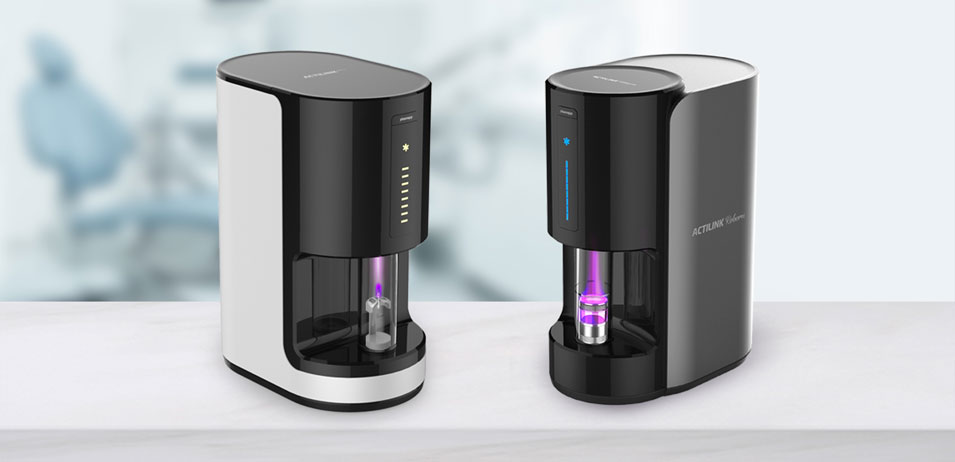

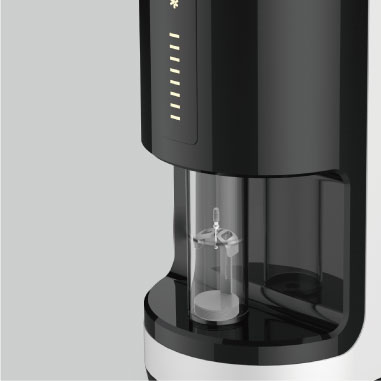

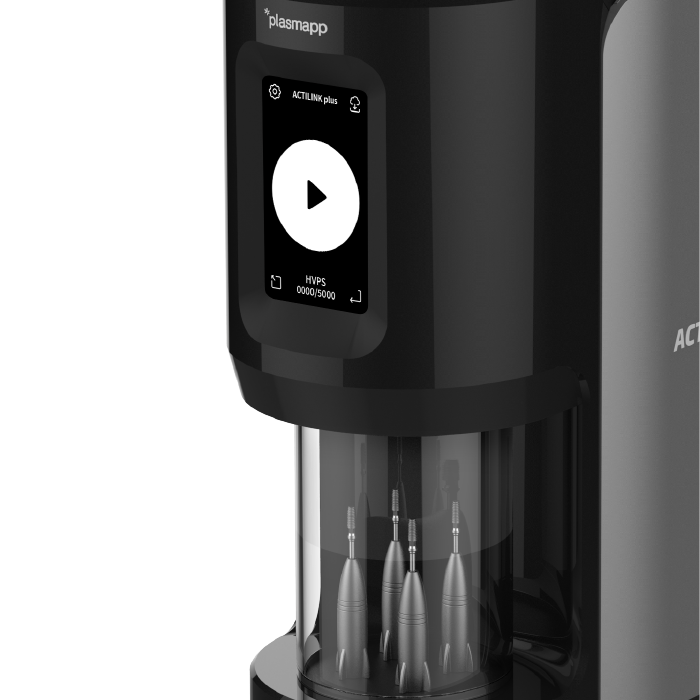

ACTILINK Regenerative Activation Solution
Implant Surgery
to Improve the Quality of Life
to Improve the Quality of Life
The regenerative activation of Plasmapp is the world’s best surface treatment solution using vacuum plasma
technology to remove impurities from the surface of implantable devices including medical implant and increase surface energy.
The activated surface improves biocompatibility and shortens the surgery healing time with increasing its success rate.
Improving
Hydrophilicity
Clean
Surface
Increased Cell
Adhesion
Easy
Operation
Plasma Regenerative Activation Technology
Impurities such as hydrocarbons are generated on the surface of implants during distribution after production.
Impurities prevent wounds from healing when implants are placed. At this time, plasma treatment removes impurities from the surface of the implant and increases hydrophilicity to speed up recovery after surgery.
(Hydrophilicity: property showing affinity for liquid)
(Hydrophilicity: property showing affinity for liquid)
Innovative product that improves osseointegration by
using vacuum plasma technology
using vacuum plasma technology

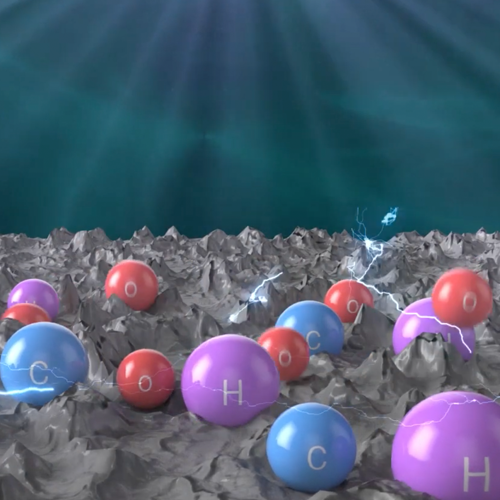

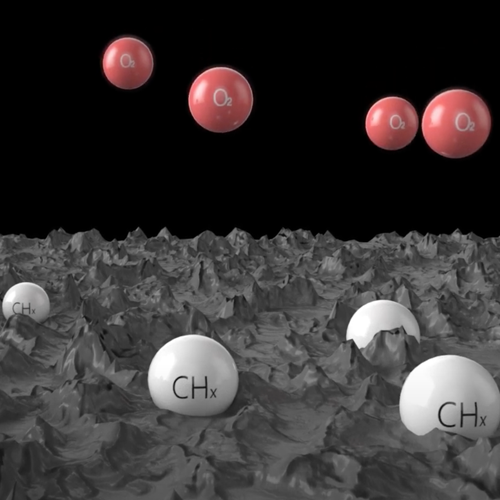

Hydrocarbons on the implant surface

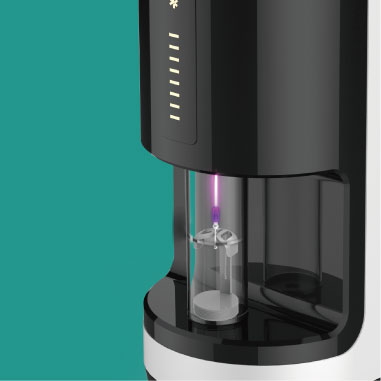

Plasma discharge
Remove hydrocarbon

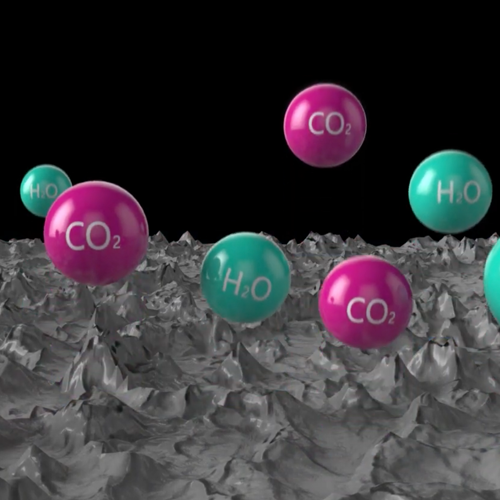

Hydrocarbons (CHx) are effectively removed by generating plasma (Glow discharge) directly on the implant surface in an optimal vacuum environment (5 to 10 torr, approximately 99% vacuum).
(CHx + O2 + Plasma → CO2 + H2O)
(CHx + O2 + Plasma → CO2 + H2O)
Process of Contamination and Regenerative Activation
CNC Machining
Sand Blasting
Acid-ftching
Aging of Dental Implant
Cleaning & Sterilization
Shelf Life
Plasma Activation
Implant Surgery
Immediately after manufacturing, most implants maintain optimal surface condition
→ High biocompatibility without any special treatment
→ High biocompatibility without any special treatment
Hydrocarbon contamination by Gamma sterilization and accumulated contamination by storage period after manufacture
→ Reduced implant biocompatibility
→ Reduced implant biocompatibility
Improved placement by securing hydrophilicity through plasma treatment
Reasons for impurities of the implant surface
Contamination by Gamma sterilization
Even though most impurities were removed in the cleaning step, impurities (CHx) increased due to Gamma sterilization.
After SLA
After Cleaning
After Gamma
Fig.2 in Acta Biomaterialia 5 (2009)
Contamination by storage period
Contamination increases over time due to continuous exposure to packaging materials and internal carbon molecules during distribution and storage.
After Manufacturing
After 6 Months
After 12 Months
After 24 Months
Fig.3 in Acta Biomaterialia 5 (2009)

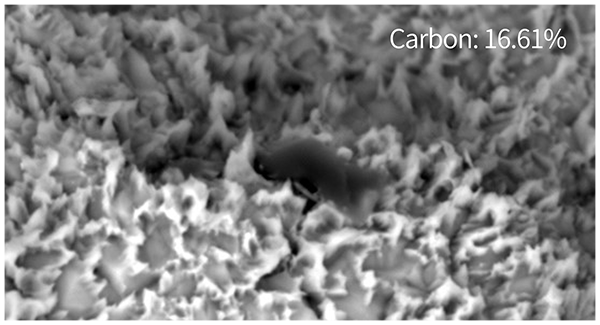

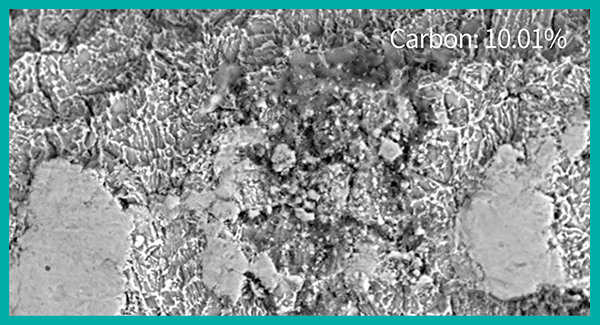

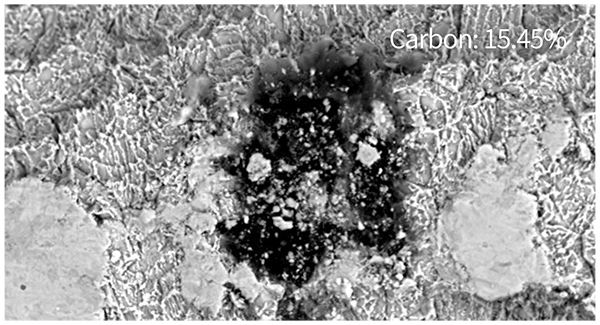

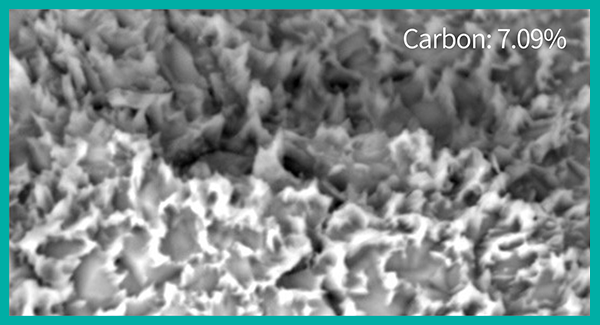

Plasma Regenerative Activation Implant Comparison (SEM)
Before the Treatment
After the Treatment
Before the Treatment
After the Treatment
Where can plasma regenerative activator used?
ACTILINK plasma regenerative activator can be applied to a variety of implants.

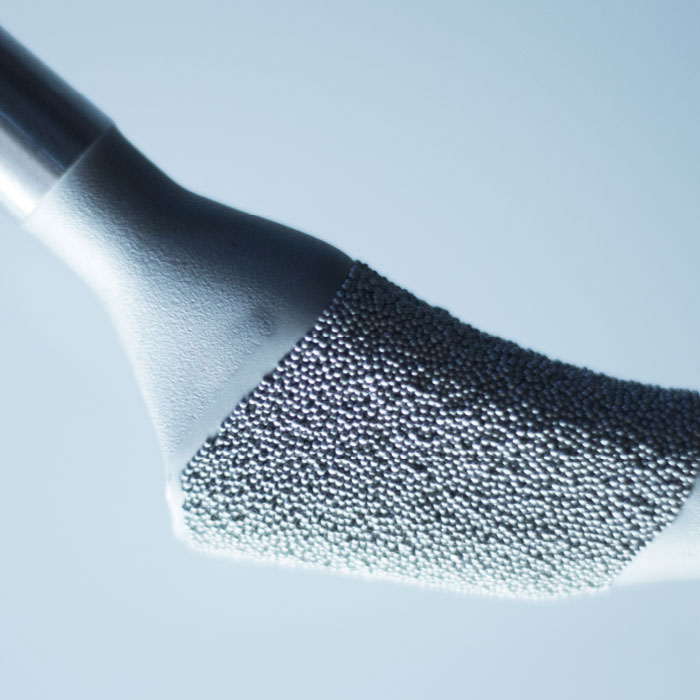

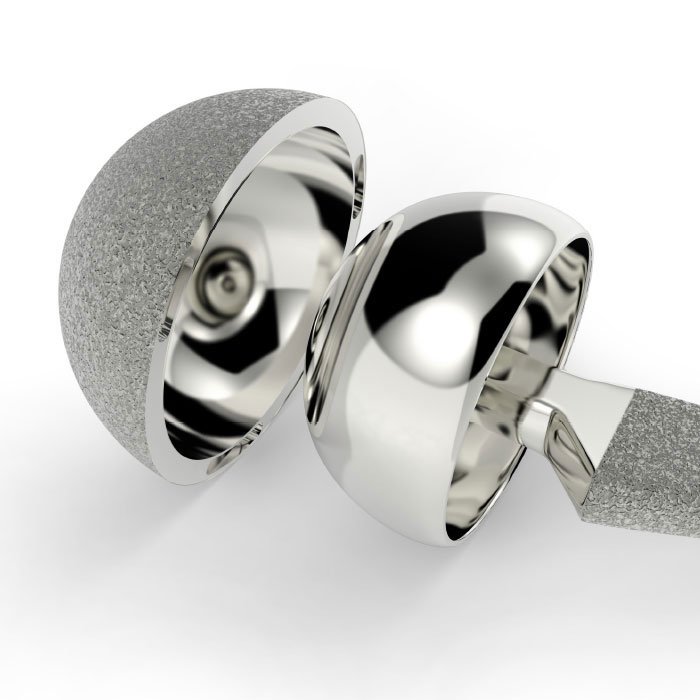

It is possible to treat the surface of implants used in dentistry and implants used in orthopedic surgery such as hip joint, hip, and spine.
